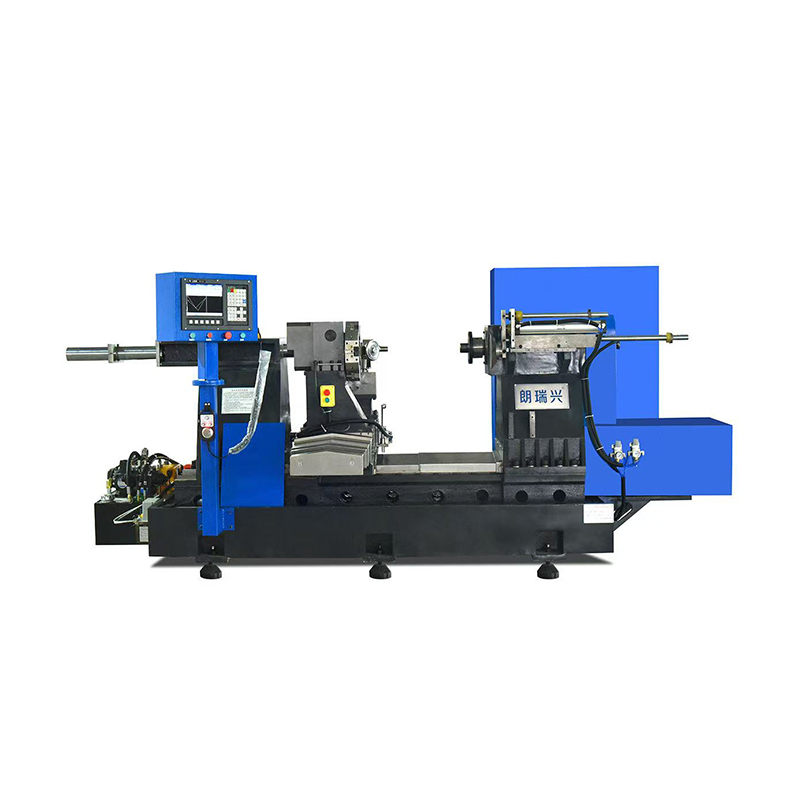

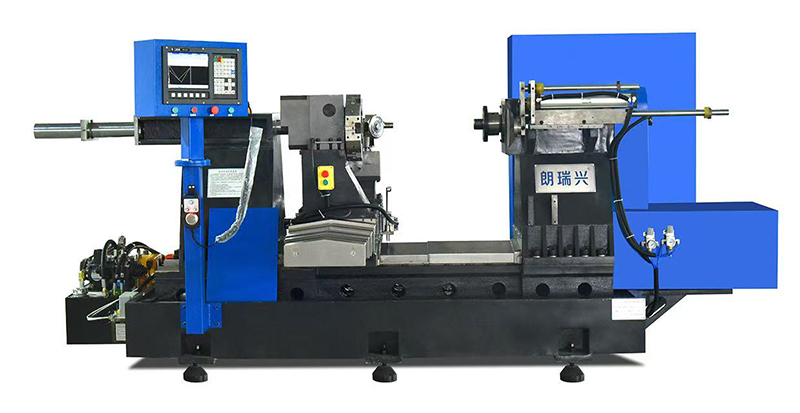

Single-spin Heavy-duty LX-800

Product Description

CNC Spinning Machine Specifications:

Name	LX-800
System configuration	Keyuan 810
Servo motor	Keyuan set
Tool rest form	Double-sided tool rest
Number of tool rest	Dota + reducer
Maximum pass diameter	0830
Maximum overfeed thickness	Iron:5.0/aluminum:8.0/copper:5.0
X axis maximum travel	700mm
Y axis maximum travel	425mm
Maximum workpiece length	Straight 600
Spindle center height	425mm
Spindle speed	0-3000
Span from spindle end face to tailstockend face	1250mm
Tailstock adjustment stroke	350mm
Tail top model	Single cylinder hydraulic
Spindle variable frequency motor power	11KW
X-axis servo motor power	3.8KW
Y-axis servo motor power	3.8KW
A-axis servo motor power	3.8KW
Machine weight	5.0T
Bed structure	Solid casting
Ball screw	4010
Buide rail	35 bal
Materiallevel support rack	Standard configuration
Blow air	Standard configuration
Baffle plate	Standard configuration

Frequently Asked Questions

Are you a manufacturer or a trade company?

We are manufacturer.
What is the advantage about your company?

Zhongshan Lilang CNC Machinery Co., Ltd. is a CNC spinning machine manufacturer integrating R&D, production and sales.
What is your product range?

Our company is a manufacturer that produces and sells CNC spinning machines.
How many employees do you have?

We have 30 employees.
What is your factory scale?

Our factory has 3000 square meters.
What is your minimum order quantity?

Our minimum order quantity is One unit.
What Is your capacity per year?

Our annual production capacity is 300 units.
