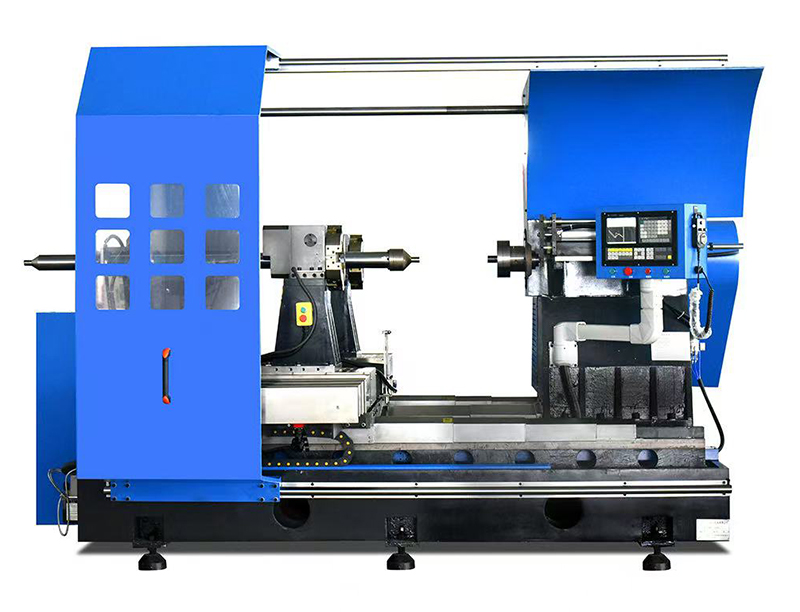

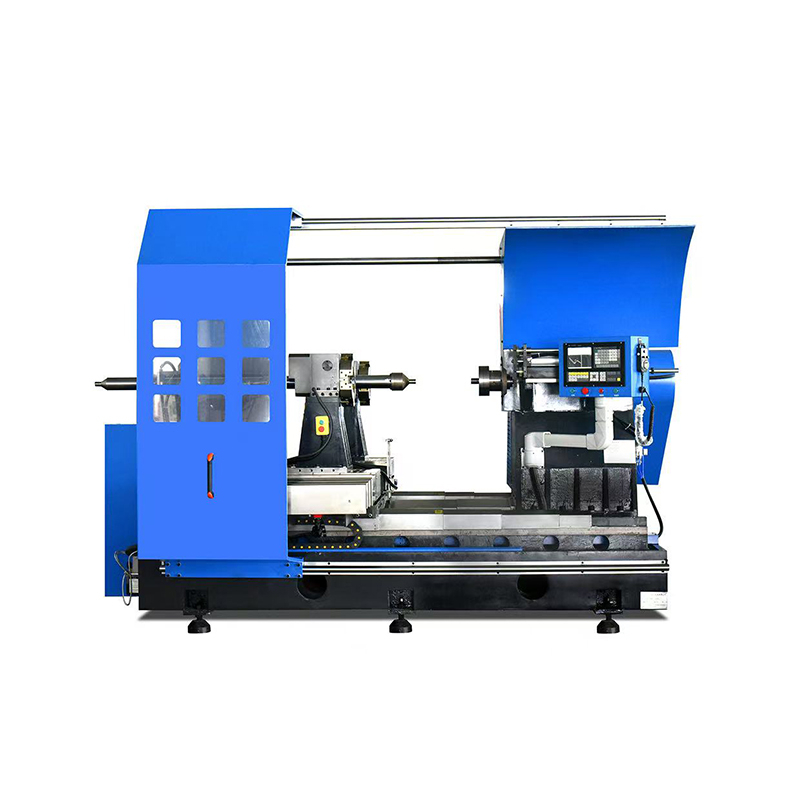

Double Spin Heavy Duty LX-1100

Product Description

CNC Spinning Machine Specifications:

Name	LX-1100
System configuration	Keyuan/Thiens
Servo motor	Keyuan set
Tool rest form	Dota + Dota
Number of tool rest	Front and rear 6 station tower
Double rotation system	Double servo motor,doublelead screw postitive and negative teeth synchronousrotation
Maximum pass diameter	01130mm
Y axis maximum travel	580+580mm
X axis maximum travel	650mm
Spindle center height	575mm
Spindle speed	1-1500r/min
Power source	AC380V three-phase four-wire
Maximum overfeed thickness	Stainless steel3.0/Iron:6.0/aluminum:8.0/copper:6.0
Maximum workpiece length	Straight 350
Span from spindle end face to tailstockend face	1250mm
Tailstock adjustment stroke	300mm
Tail top model	Double cylinder hydraulic
Tailstock travel	600mm
Spindle variable frequency motor power	37KW
Gross power	50.4KW
Machine size	3.7×3.1×2.5m
Machine weight	12T
Bed structure	Solid casting
Ball screw	6310
Roller	65 ball
Material level support rack	Standard configuration
Blow air	Standard configuration
Baffle plate	Standard configuration

Frequently Asked Questions

Are you a manufacturer or a trade company?

We are manufacturer.
What is the advantage about your company?

Zhongshan Lilang CNC Machinery Co., Ltd. is a CNC spinning machine manufacturer integrating R&D, production and sales.
What is your product range?

Our company is a manufacturer that produces and sells CNC spinning machines.
How many employees do you have?

We have 30 employees.
What is your factory scale?

Our factory has 3000 square meters.
What is your minimum order quantity?

Our minimum order quantity is One unit.
What Is your capacity per year?

Our annual production capacity is 300 units.
