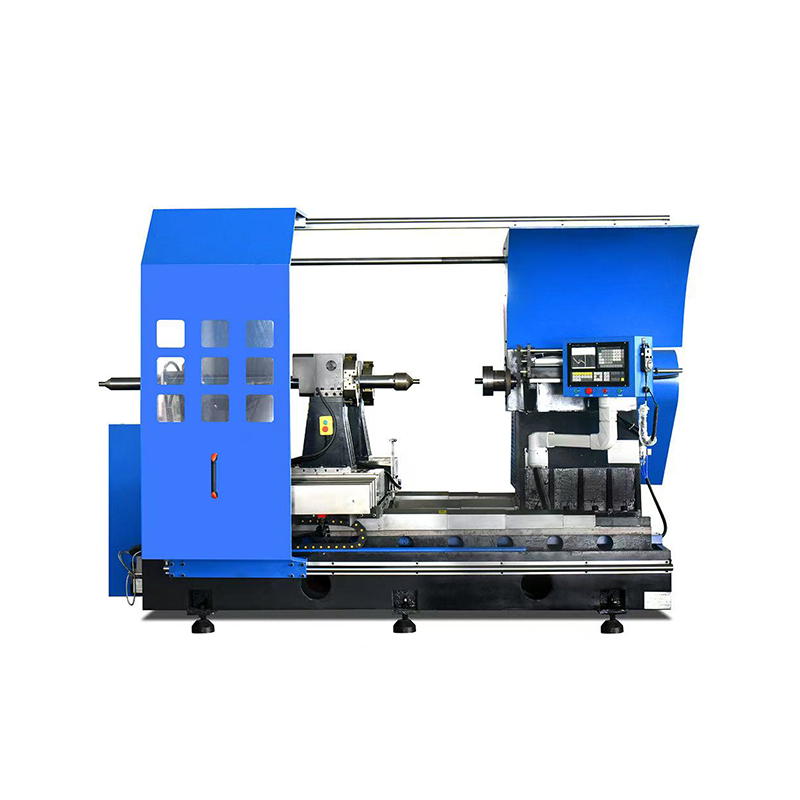

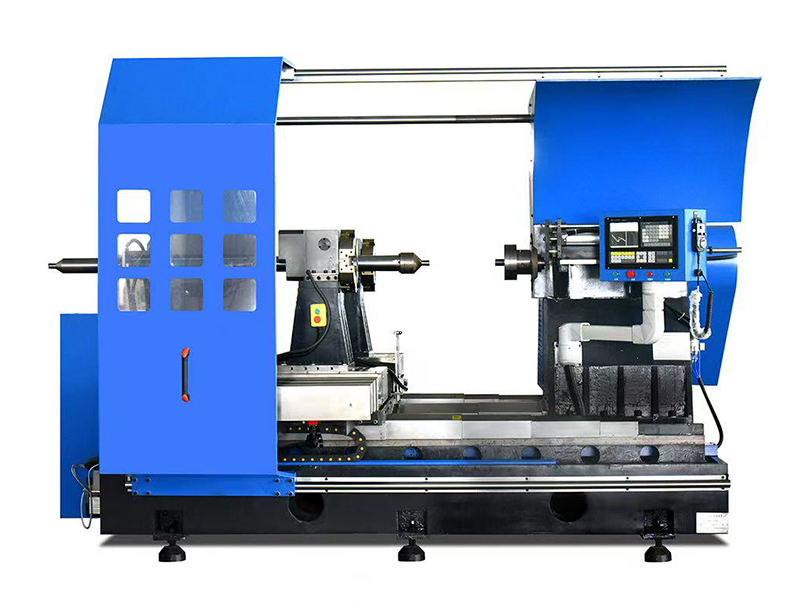

CNC Spinning Machine Specifications:
| Name | LX-900 |
System configuration | Keyuan/Thiens |
Servo motor | Keyuan set |
Tool rest form | Dota + Dota |
Number of tool rest | Front and rear 6 station tower |
Double rotation system | Double servo motor,doublelead screw postitive and negative teeth synchronousrotation |
Maximum pass diameter | 0930mm |
Y axis maximum travel | 480+480mm |
X axis maximum travel | 550mm |
Spindle center height | 475mm |
Spindle speed | 1-1500r/min |
Power source | AC380V three-phase four-wire |
Maximum overfeed thickness | Stainless steel3.0/Iron:6.0/aluminum:8.0/copper:6.0 |
Maximum workpiece length | Straight 500 |
Span from spindle end face to tailstockend face | 1050mm |
Tailstock adjustment stroke | 300mm |
Tail top model | Double cylinder hydraulic |
Tailstock travel | 600mm |
Spindle variable frequency motor power | 30KW |
Gross power | 43.4KW |
Machine size | 3.6×28×2.3m |
Machine weight | 10T |
Bed structure | Solid casting |
Ball screw | 5010 |
Roller | 55 ball |
Material level support rack | Standard configuration |
Blow air | Standard configuration |
| Baffle plate | Standard configuration |
