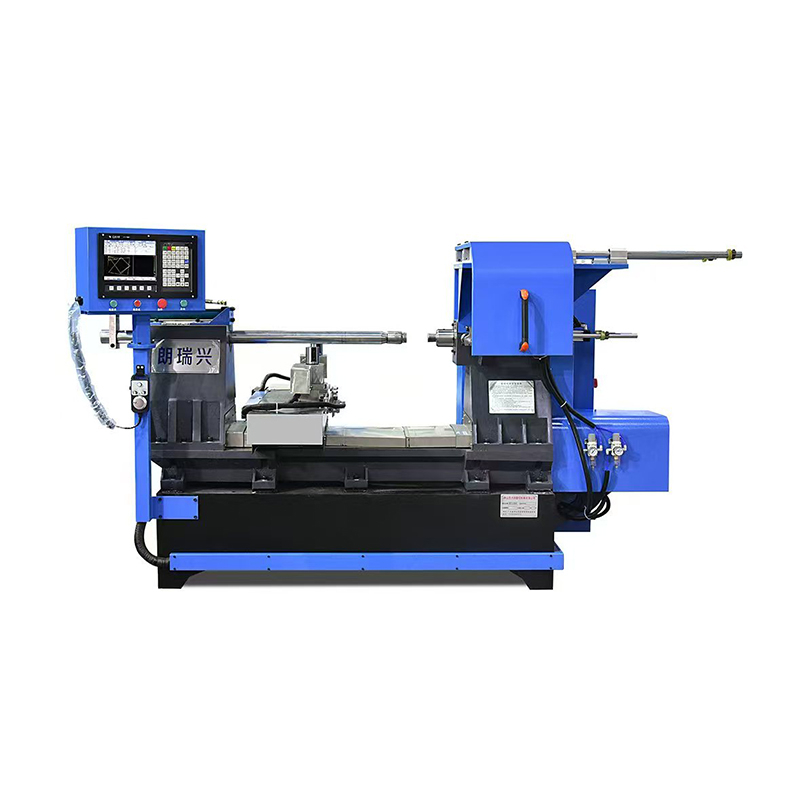

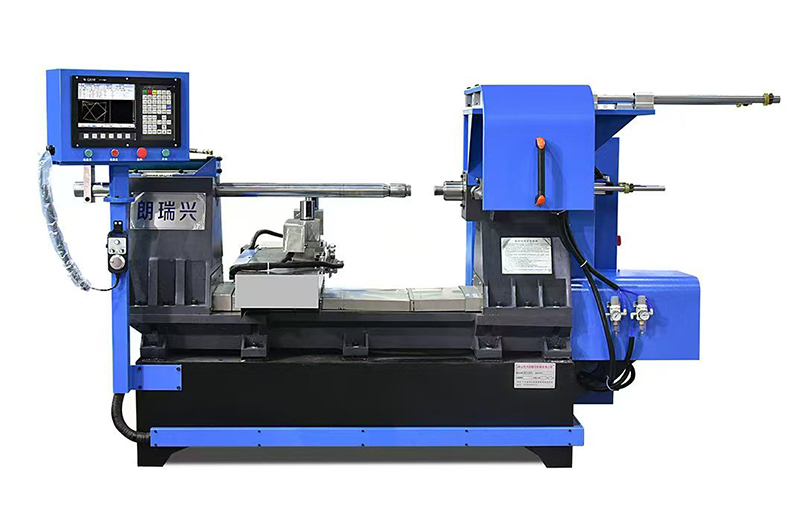

Single Spin Light LX-500

Product Description

CNC Spinning Machine Specifications:

Name	LX-500
System configuration	Keyuan 810
Servo motor	Keyuan set
Tool rest form	Double-sided tool rest
Number of tool rest	Pneumatic cutter holder+reducer
Maximum pass diameter	②530
Maximum overfeed thickness	Iron:2.0/aluminum:3.0/copper:3.0
X axis maximum travel	600mm
Y axis maximum travel	275mm
Maximum workpiece length	Straight 350
Spindle center height	275mm
Spindle speed	0-3000
Span from spindle end face to tailstockend face	850mm
Tailstock adjustment stroke	0
Tail top model	Single cylinder hydraulic
Spindle variable frequency motor power	5.5KW
Gross power	12.6KW
Machine size	2.31.51.6m
Machine weight	2.3T
Bed structure	Base plate welding
Ball screw	3210
Buide rail	35 ball
Material level support rack	Standard configuration
Blow air	Standard configuration
Baffle plate	Standard configuration

Frequently Asked Questions

Are you a manufacturer or a trade company?

We are manufacturer.
What is the advantage about your company?

Zhongshan Lilang CNC Machinery Co., Ltd. is a CNC spinning machine manufacturer integrating R&D, production and sales.
What is your product range?

Our company is a manufacturer that produces and sells CNC spinning machines.
How many employees do you have?

We have 30 employees.
What is your factory scale?

Our factory has 3000 square meters.
What is your minimum order quantity?

Our minimum order quantity is One unit.
What Is your capacity per year?

Our annual production capacity is 300 units.
