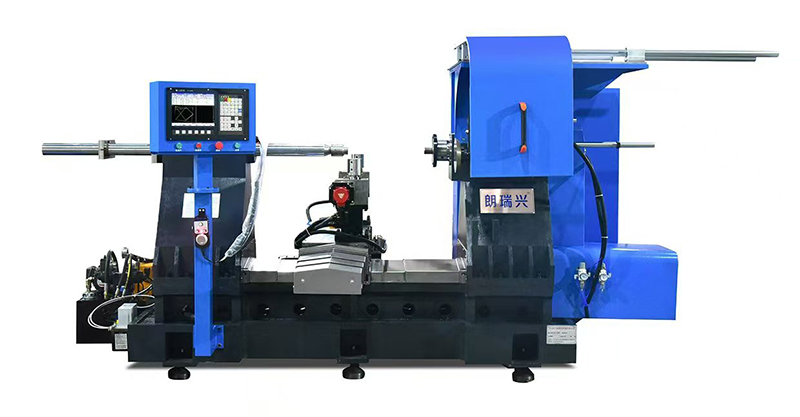

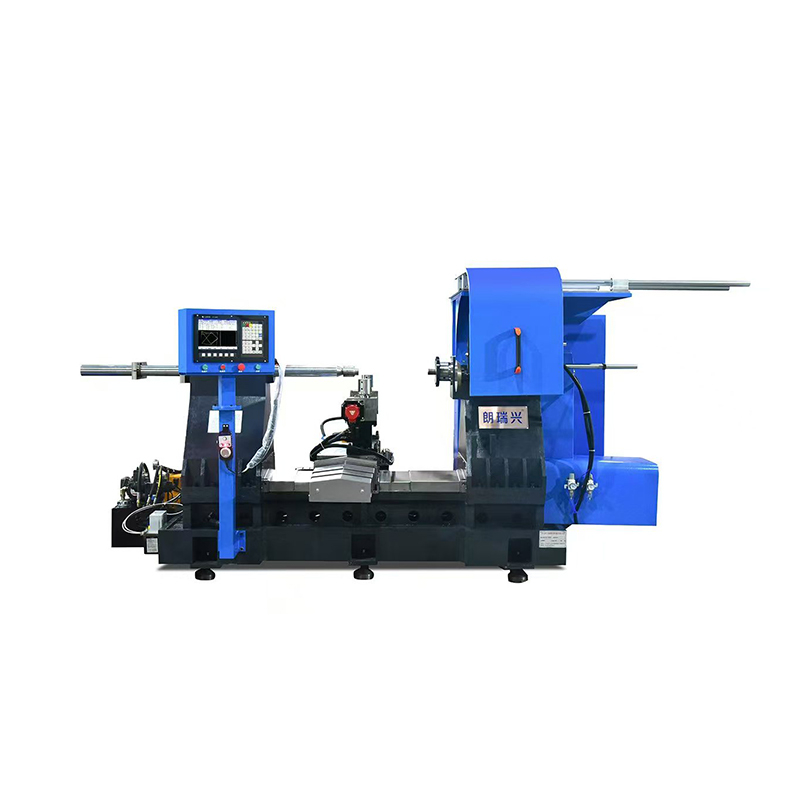

CNC Spinning Machine Specifications:
| Name | LX-800 |
System configuration | Keyuan 810 |
Servo motor | Keyuan set |
Tool rest form | Double-sided tool rest |
Number of tool rest | Pneumatic cutter holder+reducer |
Maximum pass diameter | 0830 |
Maximum overfeed thickness | Iron:2.0/aluminum:4.0/copper:3.0 |
X axis maximum travel | 720mm |
Y axis maximum travel | 425mm |
Maximum workpiece length | Straight 450 |
Spindle center height | 425mm |
Spindle speed | 0-3000 |
Span from spindle end face to tailstockend face | 1020mm |
Tailstock adjustment stroke | 300mm |
Tail top model | Single cylinder hydraulic |
Spindle variable frequency motor power | 11KW |
Gross power | 27.7KW |
Machine size | 3.3*2.5*1.6m |
Machine weight | 4.8T |
Bed structure | Solid casting |
Ball screw | 4010 |
Guide rai | 45 ball |
Material level support rack | Standard configuration |
Blow air | Standard configuration |
Baffleplate | Standard configuration |
